Next-Gen AI Performance Is Here – Pre-Order the New MINIX AI PC Today!

MINISFORUM MS-03 AI Mini Workstation – Intel Core Ultra 9 386H, 32GB RAM, 1TB SSD

$2,349.00

Ships in 2-3 weeks

1 in stock (can be backordered)

Share :

Shipping Information

Shipping Estimate

The MINISFORUM MS-03 is a high-performance AI Mini Workstation designed for professionals who need powerful computing, advanced networking and extensive storage and expansion options in a compact form factor.

Powered by the Intel® Core™ Ultra 9 386H, the MS-03 combines strong multi-core CPU performance, integrated Intel® Graphics and dedicated AI acceleration through its built-in NPU.

This MegaTech Store configuration comes equipped with 32GB DDR5 RAM and a fast 1TB NVMe SSD, making it ready for professional workloads, virtualisation, software development, networking, local AI applications and demanding business environments.

Intel® Core™ Ultra 9 386H

At the heart of the MS-03 is the Intel® Core™ Ultra 9 386H, featuring:

  • 16 cores / 16 threads
  • Up to 4.9GHz
  • Integrated Intel® Graphics
  • Dedicated Intel® NPU
  • Up to 50 TOPS NPU performance
  • Intel® vPro® support

The combination of CPU, GPU and NPU processing allows the MS-03 to efficiently handle conventional workloads alongside modern AI-assisted applications.

Built for Local AI

The MS-03 includes dedicated hardware acceleration for compatible AI workloads, making it suitable for:

  • Local AI applications
  • AI-assisted productivity
  • Development and testing
  • Local LLM workloads
  • Document processing and summarisation
  • Data analysis
  • Edge computing
  • Private AI deployments

Processing supported workloads locally can help reduce dependence on cloud services while offering greater control over data and latency.



This configuration comes with:

32GB DDR5 RAM

The MS-03 features 2 × DDR5 SO-DIMM slots and supports significantly larger memory configurations if your workload grows in the future.

Its upgradeable memory design makes the MS-03 particularly suitable for virtual machines, development environments, databases and memory-intensive professional applications.

1TB NVMe SSD

A fast 1TB NVMe SSD comes installed, providing responsive boot times, fast application loading and high-speed access to files and datasets.

The MS-03 provides extensive storage expansion with three M.2 NVMe SSD slots, including PCIe 5.0 connectivity.

Storage Expansion

  • 1 × M.2 2280 PCIe 5.0 x4
  • 1 × M.2 2280/22110 PCIe 5.0 x4
  • 1 × M.2 2280/22110 PCIe 4.0

This provides excellent flexibility for additional SSDs, virtual machines, AI models, media libraries and large datasets.

U.2 Enterprise SSD Support

The MS-03 also supports compatible U.2 NVMe SSDs using an M.2-to-U.2 adapter, providing additional options for high-capacity enterprise storage.

This makes it particularly attractive for users building compact servers, storage-intensive workstations and professional lab environments.

Exceptional High-Speed Networking

Networking is one of the standout features of the MS-03.

It includes:

  • 2 × 10G SFP+
  • 1 × 10GbE RJ45
  • 1 × 2.5GbE RJ45

With multiple high-speed network interfaces, the MS-03 is an excellent platform for:

  • NAS and server connectivity
  • 10GbE networks
  • Virtualisation
  • Firewall and routing applications
  • Homelabs
  • Edge computing
  • High-speed file transfers
  • Business network infrastructure

PCIe Expansion

Unlike many conventional Mini PCs, the MS-03 includes a PCIe expansion slot, providing additional flexibility for compatible professional hardware.

The physical PCIe x16 slot operates at PCIe 4.0 x4 and supports compatible low-profile, single-slot expansion cards.

This opens up possibilities for additional networking, specialised controllers and other PCIe devices.

Dual USB4 40Gbps

The MS-03 includes 2 × USB4 Type-C ports, offering data transfer speeds of up to:

40Gbps

USB4 provides high-speed connectivity for:

  • External SSDs
  • Docking stations
  • High-resolution displays
  • Professional peripherals
  • Compatible external devices

Both USB4 ports also support DisplayPort video output.

Multi-Display Support

Build a productive multi-screen workstation using:

  • 1 × HDMI 2.1
  • 2 × USB4 with DisplayPort support

The HDMI 2.1 connection supports resolutions up to 4K @ 120Hz, making the MS-03 suitable for professional multi-monitor environments.

Wi-Fi 7 + Bluetooth

In addition to its extensive wired networking, the MS-03 provides modern wireless connectivity with:

  • Wi-Fi 7
  • Bluetooth connectivity

This provides flexibility for both high-speed wired infrastructure and wireless peripherals and networks.

Intel® vPro® Support

Intel® vPro® support makes the MS-03 particularly attractive for professional IT environments.

Compatible management features can assist organisations with remote system administration, maintenance and troubleshooting, making the MS-03 suitable for distributed business environments and managed deployments.

Advanced Cooling

The MS-03 incorporates an active cooling system designed to maintain stable performance during sustained professional workloads.

The thermal solution includes:

  • Dual heatpipes
  • Large turbo blower fan
  • Phase-change thermal material

Selectable operating profiles allow users to balance performance and acoustics depending on workload requirements.

Comprehensive Connectivity

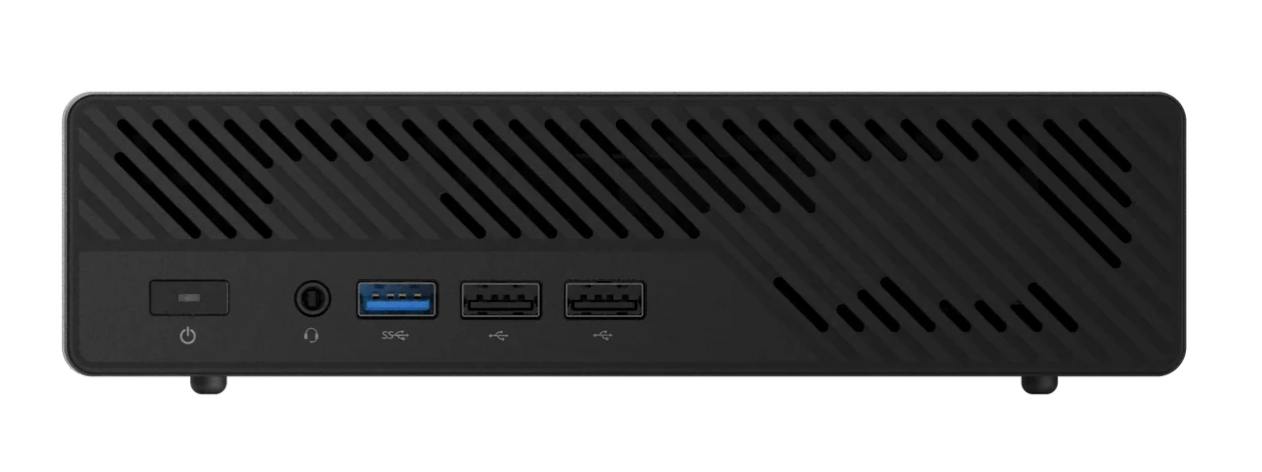

Front I/O

  • 1 × USB-A 3.2 Gen 2
  • 2 × USB-A 2.0
  • 1 × 3.5mm audio combo jack
  • Power button
  • Reset

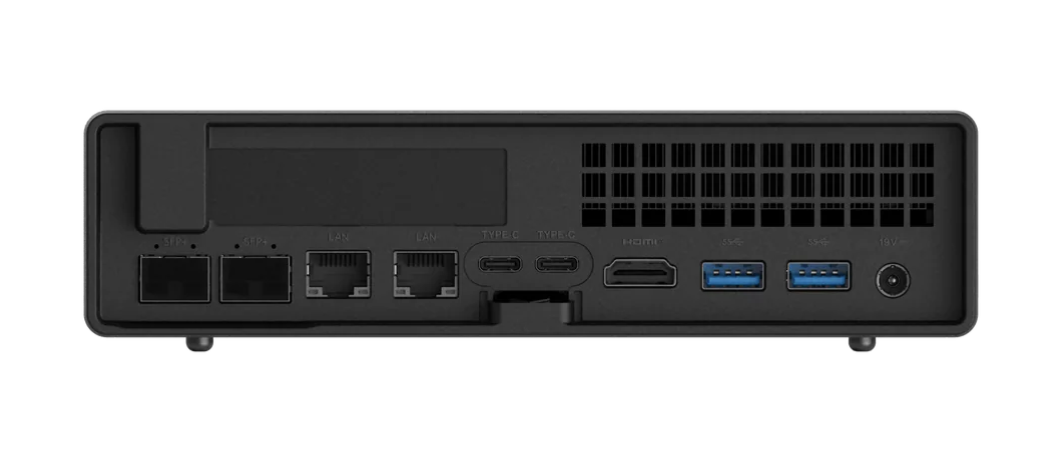

Rear I/O

  • 2 × USB4 Type-C – up to 40Gbps
  • 2 × USB-A 3.2 Gen 2
  • 1 × HDMI 2.1
  • 2 × 10G SFP+
  • 1 × 10GbE RJ45
  • 1 × 2.5GbE RJ45

Key Features

  • Intel® Core™ Ultra 9 386H
  • 16 cores / 16 threads
  • Up to 4.9GHz
  • Dedicated Intel® AI NPU
  • Up to 50 TOPS NPU performance
  • Intel® Graphics
  • Intel® vPro® support
  • 32GB DDR5 RAM
  • 1TB NVMe SSD
  • 3 × M.2 NVMe SSD slots
  • PCIe 5.0 NVMe storage support
  • U.2 NVMe support
  • PCIe expansion slot
  • 2 × 10G SFP+
  • 1 × 10GbE RJ45
  • 1 × 2.5GbE RJ45
  • Wi-Fi 7
  • Dual USB4 40Gbps
  • HDMI 2.1
  • Multi-display support
  • Advanced active cooling
  • Compact workstation design

A Serious Mini Workstation for AI, Networking and Virtualisation

The MINISFORUM MS-03 is designed for users who need more than a conventional Mini PC.

With an Intel Core Ultra 9 processor, 32GB DDR5 RAM, 1TB NVMe SSD, dedicated AI acceleration, PCIe expansion, triple NVMe storage and multiple 10 Gigabit network connections, it provides an exceptionally versatile platform for professional workstations, local AI, virtualisation, network infrastructure and advanced home-lab environments.

Its combination of workstation-level expansion and compact dimensions makes the MS-03 an excellent choice for users who want powerful and flexible computing without the size of a traditional desktop tower.

Processor
CPU: Intel® Core™ Ultra 9 386H
Total Cores: 16 Cores
Total Threads: 16 Threads
Frequency: 1.6Ghz
Max Turbo Frequency: 4.9Ghz
TDP (Balance Mode): PL1 70W, PL2 80W
TDP (Quiet Mode): PL1 45W, PL2 45W
Note: Automatically switches to Quiet Mode when a graphics card is installed
GPU
Graphics Cards: Intel® Graphics
Max Dynamic Frequency: 2.5 GHz
GPU Peak TOPS (Int8): 40
NPU
NPU Peak TOPS (Int8): 50
Memory
Memory Type: DDR5 (SO-DIMM Slot × 2)
Optional SKU DDR Capacity: 32 GB / 64 GB
Speed Support: 5600 / 6400 / 7200 MT/s
Max Capacity Support: 128 GB
Storage
1 × M.2 2280 NVMe SSD slot (PCIe 5.0 x4, up to 8 TB; supports U.2 NVMe SSD via the included M.2-to-U.2 adapter, up to 15 TB, 7 mm-thick)
1 × M.2 2280/22110 NVMe SSD slot (PCIe 5.0 x4, up to 8 TB)
1 × M.2 2280/22110 NVMe SSD slot (PCIe 4.0 x1, up to 8 TB)
Optional SKU SSD Capacity: 0 / 1TB / 2TB
Cooling System
CPU Cooling Type: 2-Heatpipe Heatsink + Turbo Fan + PCM
CPU Fan Type: 83 × 18mm Turbo Fan, 12V
MAX Speed (CPU Fan): 5100 RPM
Noise (Balance Mode-Idle/Full Load): 32–45dB (Tested in Minisforum lab test: 50 cm, anechoic chamber)
Noise (Quiet Mode-Idle/Full Load): 30–38dB (Tested in Minisforum lab test: 50 cm, anechoic chamber)
Wireless Connectivity
M.2 2230 E-Key WiFi/BT Combo Module (PCIe Only)
Wi-Fi: Wi-Fi 7 (Module: Intel® BE211)
Bluetooth: Bluetooth® 6
Ethernet Controller
1 × 10GbE RJ-45 LAN (RJ45): Module: Realtek RTL8127
1 × 2.5GbE RJ-45 LAN (RJ45): Module: Intel i226-LM
2 × 10G SFP+: Module: Intel X710
Video Output
1 × HDMI™ (Up to 4K@120Hz)
2 × USB4 (Up to 40Gbps, DisplayPort™ 2.1 Alt Mode)
1 × HDMI™
Audio Output
2 × Type-C
1 × 3.5mm Combo Jack
Audio Input
1 × 3.5mm Combo Jack
I/O Ports
Front:
1 × USB 3.2 Gen2 Type-A
2 × USB 2.0 Type-A
1 × 3.5mm Combo Jack
2 × USB 3.2 Gen 2 Type-A
2 × USB4 Type-C (Up to 40 Gbps, DisplayPort 2.1 Alt Mode)
Back Panel:
1 × HDMI™ 2.1 (FRL, Up to 4K@120 Hz)
1 × 2.5GbE RJ-45 (Intel i226-LM)
1 × 10GbE RJ-45 (Realtek RTL8127)
2 × 10G SFP+ (Intel X710)
PCIe Expansion
1 × PCIe x16 Physical Slot
(PCIe 4.0 x4, supports half-height single-slot cards; max length ≤170mm, max thickness ≤20mm)
Button / Hole
1 × Power Button
1 × Reset Hole
Power Adapter
19V / 12.63A (5525mm) 240W
OS Support
Windows 11 Pro
Dimensions
196 × 189 × 48 mm
1.4kg
